• ASUS COMPONENTS ASUS SCHEDA MADRE TUF GAMING B650-PLUS WIFI ATX

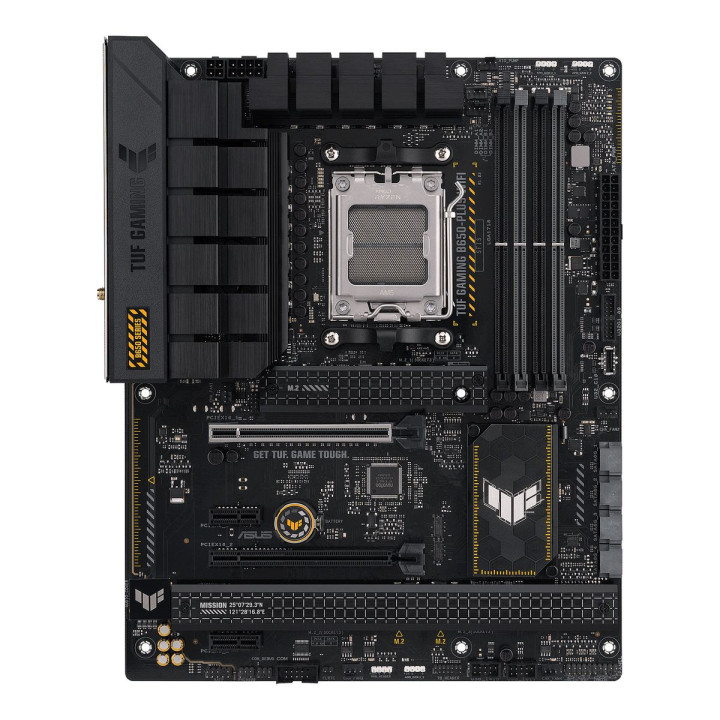

ASUS COMPONENTS ASUS SCHEDA MADRE TUF GAMING B650-PLUS WIFI ATX

Asus card mother tuf gaming b650-plus wifi atx

Asus card mother tuf gaming b650-plus wifi atx asus tuf gaming b650-plus wifi. processor manufacturer: amd, taken for processor: am5 power outlet, compatible processors: amd ryzen 7 7th gen, amd ryzen 9 7th gen. supported memory types: ddr5-sdram, maximum supported ram: 128 gb, type of memory slot: dimm. interfaces of the ' supported storage drive: m.2, sata iii, types of storage units supported: hdd & ssd, raid levels: 0, 1, 10. ethernet interface type: 2.5 gigabit ethernet, wi-fi standard: wi-fi 6 (802.11ax), wi-fi standard: 802.11a, 802.11b, 802.11g, wi-fi 4 (802.11n), wi-fi 5 (802.11ac), wi-fi 6 (802.11ax). component for: pc, motherboard form factor: atx, motherboard chipset family: ♪

  • Brand
  • Reference
    STD0000974340
  • EAN13
    4711081912651
  • MPN
    90MB1BZ0-M0EAY0

  • Headphone outputs
    1
  • Number of connectors
    1
    4
  • Quantity of doors usb 3.2 gen 2 (3.1 gen 2) type c
    1
  • Quantity of doors usb 3.2 gen 2x2 type c
    1
  • Quantity doors ethernet lan (rj-45)
    1
  • Thunderbolt doors
    1
  • Quantity displayports
    1
  • Quantity hdmi
    1
  • Weight (g)
    1200
  • Weight of the packaging (g)
    1362
  • Connectors usb 2.0
    2
  • Connectors usb 3.2 gen 1 (3.1 gen 1)
    2
  • Quantity of doors usb 3.2 gen 2 (3.1 gen 2) type a
    2
  • Slot pci express x1 (gen 4.x)
    2
  • Slot pci express x16 (gen 4.x)
    2
  • Depth (mm)
    244
  • Bios memory size (mbit)
    256
  • Depth packaging (mm)
    273
  • Number of slots of m.2 (m)
    3
  • Width (mm)
    305
  • Packing width (mm)
    338
  • Memory slot number
    4
  • Number of chassis fan connectors
    4
  • Quantity doors usb 2.0
    4
  • Bluetooth version
    5.2
  • Height (mm)
    50
  • Packing height (mm)
    68
  • Number of supported storage devices
    7
  • Audio system
    7.1
  • Motherboard form factor
    At
  • Chipset motherboard
    B650
  • Supported memory types
    Ddr5-sdram
  • Type of memory slot
    Dimmable
  • Memory channels
    Dual-channel
  • Supported storage drive types
    Hdd
  • Supported storage drive interfaces
    M., iii
  • Output port s/pdif
    No
  • Integrated graphics card
    No
  • Component
    Pcs
  • Taken for processor
    Socket
  • Wi-fi standard
    Wi-fi 6 (802.11ax)
  • Connector atx (24-pin)
    Yes
  • Bluetooth
    Yes
  • Microphone, input plug
    Yes
  • Front panel audio
    Yes
  • Connector fan cpu
    Yes
  • Data integrity check (check data integrity)
    Yes
  • Not-ecc
    Yes
  • Eps power connector (8-pin)
    Yes
  • Led connector rgb
    Yes
  • Connection ethernet lan
    Yes
  • Raid support
    Yes
  • Wi-fi
    Yes
  • Line input
    Yes
  • Without buffer
    Yes
  • Manufacturer
    ♪
  • Manufacturer processor
    ♪
  • Maximum supported ram (gb)
    ♪
  • Family of chipset for motherboard
    ♪
  • Type bios
    ♪
