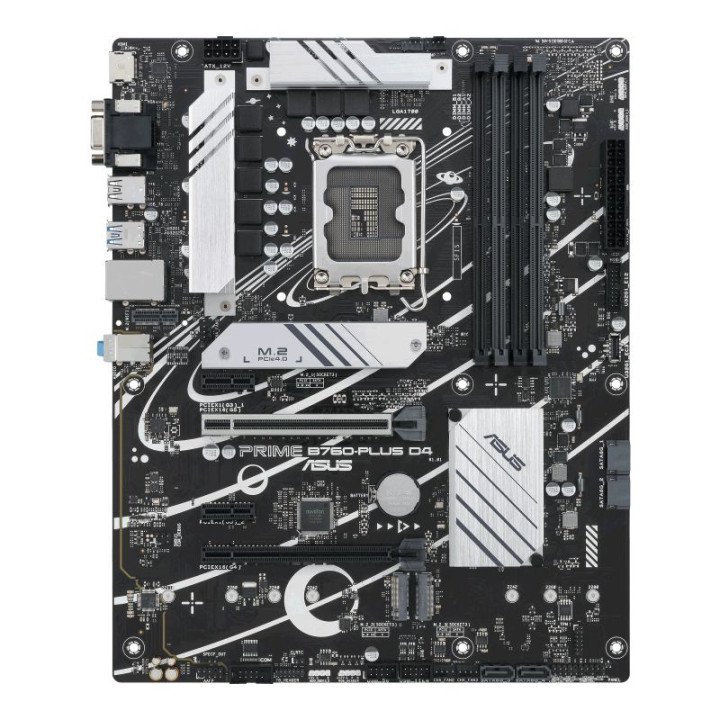

• ASUS COMPONENTS ASUS SCHEDA MADRE PRIME B760-PLUS D4

ASUS COMPONENTS ASUS SCHEDA MADRE PRIME B760-PLUS D4

Asus motherboard first b760-plus d4

Asus motherboard first b760-plus d4 asus prime b760-plus d4. processor manufacturer: intel, taken for processor: lga 1700, processors compatible: intel® celeron®, intel® repentum® gold, intel® coretm i3, intel® coretm i5, intel® coretm.... supported memory types: ddr4-sdram, maximum supported ram: 128 gb, type of memory slot: dimm. interfaces of the ' supported storage drive: m.2, sata iii, types of storage units supported: hdd & ssd, raid levels: 0, 1, 5, 10. ethernet interface type: 2.5 gigabit ethernet. component for: pc, motherboard form factor: atx, motherboard chipset family: intel

  • Brand
  • Reference
    STD0001164630
  • MPN
    90MB1CW0-M1EAY0

  • Slot pci express x16 (gen 5.x)
    1
  • Quantity doors vga (d-sub)
    1
  • Slot pci express x16 (gen 4.x)
    1
  • Quantity doors ethernet lan (rj-45)
    1
  • Quantity displayports
    1
  • Quantity of doors usb 3.2 gen 1 (3.1 gen 1) type a
    1
  • Quantity hdmi
    1
  • Headphone outputs
    1
  • Thunderbolt doors
    1
  • Peripheral connectors (molex) (4-pin)
    1
  • Number of connectors
    1
    4
  • Quantity of doors usb 3.2 gen 2x2 type c
    1
  • Version displayport
    1.4
  • Slot pci express x1 (gen 3.x)
    2
  • Quantity doors usb 2.0
    2
  • Connectors usb 2.0
    2
  • Connectors usb 3.2 gen 1 (3.1 gen 1)
    2
  • Quantity of doors usb 3.2 gen 2 (3.1 gen 2) type a
    2
  • Version hdmi
    2.1
  • Depth (mm)
    244
  • Number of slots of m.2 (m)
    3
  • Number of chassis fan connectors
    3
  • Width (mm)
    305
  • Number of supported hard drives
    4
  • Memory slot number
    4
  • Supported memory clock speed (max) (mhz)
    5066
  • Number of supported storage devices
    7
  • Audio system
    7.1
  • Motherboard form factor
    At
  • Supported memory types
    Ddr4-sdram
  • Type of memory slot
    Dimmable
  • Memory channels
    Dual-channel
  • Supported storage drive types
    Hdd
  • Manufacturer processor
    Intel
  • Family of chipset for motherboard
    Intel
  • Chipset motherboard
    Intel b760
  • Taken for processor
    Lga 1700
  • Supported storage drive interfaces
    M., iii
  • Wi-fi
    No
  • Component
    Pcs
  • Cables included
    Sata
  • 12v power connector
    Yes
  • Line input
    Yes
  • Raid support
    Yes
  • Connection ethernet lan
    Yes
  • Front panel connector
    Yes
  • Eps power connector (8-pin)
    Yes
  • Without buffer
    Yes
  • Led connector rgb
    Yes
  • Connector atx (24-pin)
    Yes
  • Front panel audio
    Yes
  • Connector output s/pdif
    Yes
  • Tpm connector
    Yes
  • Not-ecc
    Yes
  • Connector fan cpu
    Yes
  • Type bios
    ♪
  • Maximum supported ram (gb)
    ♪
  • Manufacturer
    ♪
  • Bios memory size (mbit)
    ♪
