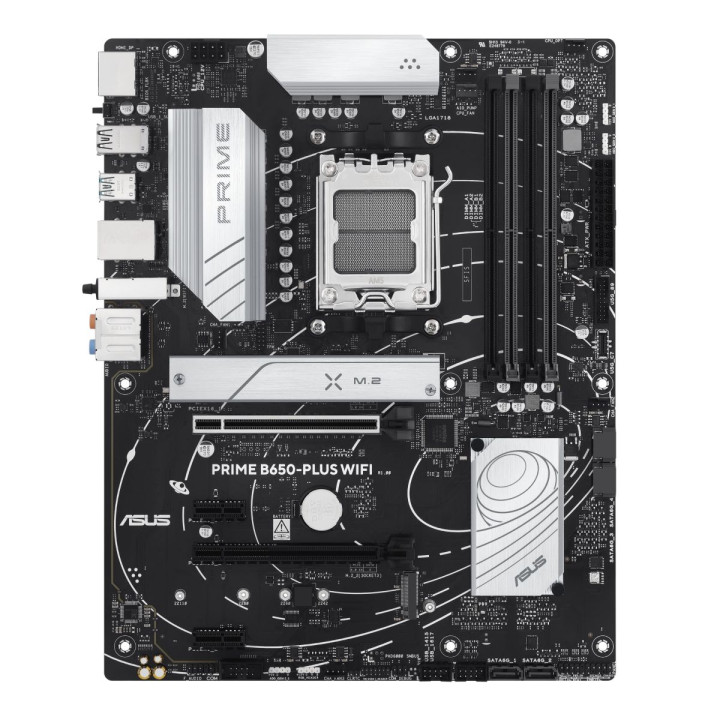

• ASUS COMPONENTS SCHEDA MADRE ASUS PRIME PRIME B650-PLUS WIFI

ASUS COMPONENTS SCHEDA MADRE ASUS PRIME PRIME B650-PLUS WIFI

Mother card asus prime b650-plus wifi

Mother card asus prime b650-plus wifi asus prime b650-plus wifi. processor manufacturer: amd, taken for processor: am5 sockets, compatible processors: amd ryzen 7000 series, amd ryzen 8000 series, amd ryzen 9000 series. supported memory types: ddr5-sdram, maximum supported ram: 192 gb, type of memory slot: dimm. interfaces of the ' supported storage drive: m.2, sata iii, types of storage units supported: hdd & ssd, raid levels: 0, 1, 10. ethernet interface type: 2.5 gigabit ethernet, wi-fi standard: wi-fi 6e (802.11ax), standard wi-fi: wi-fi 6e (802.11ax). component for: pc, motherboard form factor: atx, motherboard chipset family: ♪

  • Brand
  • Reference
    STD0001754391
  • EAN13
    4711387760895
  • MPN
    90MB1KP0-M0EAY0

  • Quantity hdmi
    1
  • Quantity of doors usb 3.2 gen 2 (3.1 gen 2) type c
    1
  • Number of connectors
    1
    4
  • Number of pin header for led rgb
    1
  • Quantity displayports
    1
  • Quantity doors ethernet lan (rj-45)
    1
  • Thunderbolt doors
    1
  • Plug antenna wifi-ap
    1
  • Weight of the packaging (g)
    1350
  • Maximum supported ram (gb)
    192
  • Slot pci express x1 (gen 4.x)
    2
  • Number of cpu fan connectors
    2
  • Connectors usb 2.0
    2
  • Connectors usb 3.2 gen 1 (3.1 gen 1)
    2
  • Slot pci express x16 (gen 4.x)
    2
  • Number of slots of m.2 (m)
    2
  • Quantity doors usb 2.0
    2
  • Quantity of doors usb 3.2 gen 1 (3.1 gen 1) type a
    2
  • Maximum size of the first key connector m.2
    22.10
  • Maximum size of second key connector m.2
    22.10
  • Depth (mm)
    244
  • Bios memory size (mbit)
    256
  • Quantity of doors usb 3.2 gen 2 (3.1 gen 2) type a
    3
  • Depth packaging (mm)
    3
  • Number of chassis fan connectors
    3
  • Width (mm)
    305
  • Packing width (mm)
    338
  • Memory slot number
    4
  • Number of supported hard drives
    4
  • Maximum generation pci express of the second m.2
    4.0
  • Maximum generation pci express of the first m.2
    5.0
  • Bluetooth version
    5.3
  • Number of supported storage devices
    6
  • Packing height (mm)
    68
  • Audio system
    7.1
  • Supported memory clock speed (max) (mhz)
    7600
  • Motherboard form factor
    At
  • Chipset motherboard
    B650
  • Supported memory types
    Ddr5-sdram
  • Type of memory slot
    Dimmable
  • Memory channels
    Dual-channel
  • Etc
    Etc
  • Supported storage drive types
    Hdd
  • Supported storage drive interfaces
    M., iii
  • Component
    Pcs
  • Cables included
    Sata
  • Taken for processor
    Socket
  • Wi-fi standard
    Wi-fi 6e (802.11ax)
  • Output port s/pdif
    Yes
  • Front panel audio
    Yes
  • Bluetooth
    Yes
  • Tpm connector
    Yes
  • Connector fan cpu
    Yes
  • Antenna included
    Yes
  • 12v power connector
    Yes
  • Wi-fi
    Yes
  • Front panel connector
    Yes
  • Raid support
    Yes
  • Eps power connector (8-pin)
    Yes
  • Connection ethernet lan
    Yes
  • Led connector rgb
    Yes
  • Without buffer
    Yes
  • Screws included
    Yes
  • Connector atx (24-pin)
    Yes
  • Manufacturer processor
    ♪
  • Manufacturer
    ♪
  • Family of chipset for motherboard
    ♪
  • Type bios
    ♪
